AutoTune™ User Guide

3. Motorola ASTRO® XTL™ Series Radio Test Setup

In order to perform the test and alignment procedures, the ASTRO® XTL™ Series radio

must be connected to the R8000 Communications Systems Analyzer as shown in the

figure below. Use of USB radio programming cables indicated are required to perform

all tests.

Make certain that the radio under test is configured as described in the

corresponding diagram before attempting to perform an alignment or test.

Failure to do so may result in poor radio performance and/or damage to the

analyzer or radio equipment under test.

3.1. ASTRO® XTL™ Series Test Setup

Refer to the diagram below for the proper test setup.

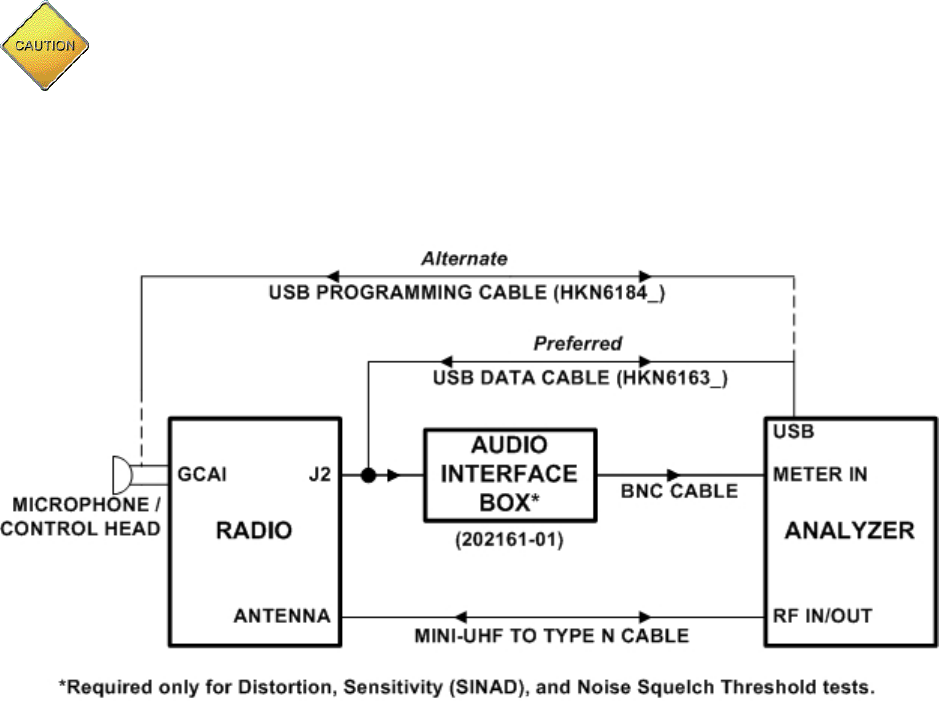

Figure 3-1. ASTRO® XTL™ Series Mid Power Test Setup Diagram

3.2. ASTRO® XTL™ Series High Power Test Setup

Refer to the diagram below for the proper test setup.
